MASTECH MS8150B Autoranging Meter Digital Multimeters Non-contact Voltage Detector

Regular price
£105.87 GBP
Regular price
£0.00 GBP
Sale price
£105.87 GBP
default

MASTECH MS8150B Autoranging Meter Digital Multimeters Non-contact Voltage Detector

Features:
Large backlit high contrast LCD display
Built-in Non-Contact Voltage Detector
CAT.IV 600V rated with 0.5% basic DCV accuracy
Measures DC/AC Voltage and Current, Resistance, Capacitance, Frequency and Duty Cycle
Diode Check and Continuity Test
USB Interface and Analysis Software
Data Hold, MAX/MIN and Relative Measurement
Display Back Light and Auto Power Off
NOTE: battery not included

Specifications:
DCV: 660mV/6.6V/66V/600V(0.5%+2)
·ACV: 660mV/6.6V/66V/600V(1%+2)
·DCA: 660A/6600A/66mA/660mA(0.8%r+2),20A(2%+2)
·ACA: 660A/6600A/66mA/660mA(1.2%+2), 20A (3%+2)
·Resistance: 660/6.6k/66 k/660 k(0.8%+2),6.6M/66M(0.8%+2)
·Capacitance: 6.6nF/66nF/660nF/6.6uF/66uF(3%+2),660uF/6.6mF/66mF(3%+2)
·Frequency: 66Hz/660Hz/6.6kHz/66kHz(0.3%+2),660kHz/6.6MHz/66MHz(0.3%+2)
·Duty ratio:10%~95% (2%+2)
·Continuity
·Non-contact voltage
·USB data transfer
·Power:9V 6F22 weight:350g
Demension:180mm×86mm×52m
Notes:the batteries not included package

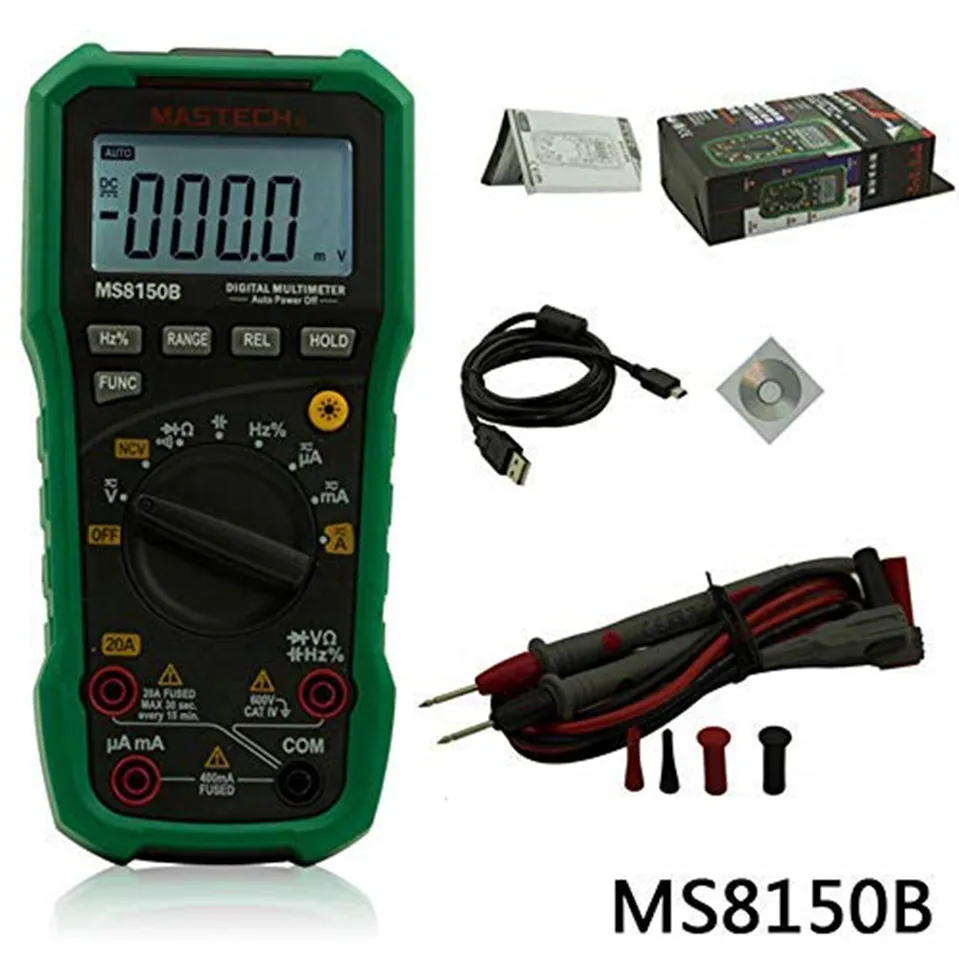

Package List:

1 * Original MASTECH MS8150B Digital Multimeter
1 * Test Leads
1 * USB Cable
1 * CD software
1 * Instruction manual


 MS8150B-- (1).jpgMS8150B-- (2).jpgMS8150B- (4).jpgMS8150B- (5).jpg
